Milk quality analyzer "Laktan 1-4M" 500 isp. MINI

22.05.2018
16.4K

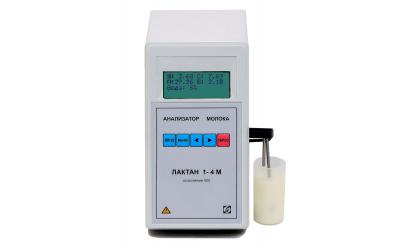

Milk quality analyzer
Photo is illustrative in nature. From open sources.

"Laktan 1-4M" 500 MINI allows you to measure the content of the mass fraction of fat, SOMO, density and added water in a Milk sample using an ultrasonic method without the use of chemical reagents.

Minimum performance level

Parameters to be determined:  fat, SOMO, density, added water

Measurement time : 3 minutes

Types of milk:  whole cow 's milk (other types of milk on request)



Milk sample preparation:  milk must be warm

Flushing:  automatic

Computer connection:  USB port, software included

Connection to a portable printer:  yes (printer ordered separately)

Features:  work from 12 and 220 V

Advantages of the milk quality analyzer "Laktan 1-4" 500:

  • high analysis speed
  • high accuracy of results
  • minimal operator attention
  • high qualification of personnel is not required
  • quick payback of the analyzer

Distinctive features of new generation analyzers:

  • Flushing without a syringe thanks to a powerful pump
  • Heavy duty housing
  • Increased measurement speed
  • Connecting via USB to a computer
  • Operation from 220V and 12V (car on-board network)

Unlike traditional methods of chemical analysis, an ultrasonic milk quality analyzer allows you to:

  • receive real-time data - no more than 3 minutes for each analysis
  • avoid the use of expensive consumables and chemicals
  • minimize the employment of laboratory assistants and maintenance personnel
  • minimize laboratory cost

Scope of use

Milk producers: peasant and farm enterprises, collective farms, breeding stations, breeding farms, breeding associations Milk processors: milk acceptance points, processing plants
Laboratories: veterinary and scientific

graduations

Milk quality analyzer "Laktan 1-4" 500 isp. MINI comes with factory graduations for whole milk.

Additional graduations are possible upon individual request:

pasteurized milk
- sterilized milk
- cream
- skim milk
- reconstituted skimmed milk
- reconstituted skimmed
milk - canned milk
- goat milk
- and others

Using the software supplied with the analyzer, each of our clients can independently create their own calibrations (IT is necessary to have milk samples and data of chemical analysis carried out by arbitration methods).

Ease of operation

Milk quality analyzer "Laktan 1-4" 500 isp. MINI is simple and easy to use, does not require highly qualified personnel.

To carry out the analysis, it is necessary to fill the cup with a sample of milk, place the cup under the sample receptacle and press just one button to perform the measurement. At the end of the analysis (after 1.5-3 minutes), a sound signal will sound and the measurement result will appear on the indicator of the device. After finishing work, the analyzer should be washed with special detergents supplied with the analyzer.

Options

The printer "TEPS-1" allows you to print the measurement results of the milk quality analyzer "Laktan 1-4" 500 isp. MINI on thermal tape.

Connecting to a computer

At desire the analyzer of quality of milk "Laktan 1-4" 500 isp. MINI can be connected to a computer via a USB port.

The analyzer comes with a disk with a backup copy of the analyzer settings and Russian-language software for Windows.

The program allows:

- receive data from the analyzer online or from the analyzer's memory
- save measurement results to a computer
- generate reports and print them
- create your own calibrations

Verification

Verification is carried out in the Rosstandart system. The milk quality analyzer "Laktan 1-4M" 500 MINI is supplied by the attorney of FGU Novosibirsk TsSM. The calibration interval is 1 year. After the expiration of the verification period, you can contact the nearest CSM with the verification procedure or any service center of the manufacturer.

Certificates

The milk quality analyzer "Laktan 1-4M" 500 MINI is registered in the State Register of Measuring Instruments of the  Russian Federation  under No. 46032-10, certificate No. 42025 is valid until November 10, 2020:

  • Certificate for analyzer "Laktan 1-4M" (part 1)
  • Certificate for analyzer "Laktan 1-4M" (part 2)



The Center for Sanitary and Epidemiological Supervision issued a hygienic conclusion 54.NS.3.421.T.02767.11.00 dated 11.28.00.

Milk quality analyzer "Laktan 1-4M"  500 MINI is included in the state registers:

  • Bulgaria
  • Belarus
  • Bulgaria
  • Germany
  • Kazakhstan (part 1, part 2)
  • Lithuania
  • Romania
  • Uzbekistan (part 1, part 2)
  • Ukraine
  • Estonia

Measurement technique

The measurement technique was certified by the All-Russian Scientific Research Institute of the Dairy Industry, certificate of attestation 2420/230-00 dated August 21, 2000, and included in the State. register VNIMI-01-2000.

Service maintenance

Warranty: 1+1 (1 year warranty + 1 year free service).

If necessary, service centers will provide free warranty repair and post-warranty service. Repairs are carried out at a high technical level and in the shortest possible time.

Comparison table of various models

Each milk quality analyzer of the model range "Laktan 1-4" 500 has a number of characteristic features that meet the needs of various categories of consumers. After reviewing a brief comparative table, you will be able to choose the best option for you.



Measured parameter

MINI

STANDARD

PROFI

Fat

+

+

+

Protein

-

+

+

Density

+

+

+

SOMO

+

+

+

Added water

+

+

+

Freezing point

-

-

+

Measurement time, min

3

2

1

Sample preparation

preliminary

preliminary

preliminary

flushing

SemiAuto

SemiAuto

SemiAuto

Connecting to a computer via USB

+

+

+

a printer

External

External

External

Work from 220V and 12 V

+

+

+
